A dielectric with some conductivity is considered lossy since a conduction current density will play a role that competes with the displacement current density. LOSSY MATERIALS LOSSY MATERIALS V20 Dielectric measurement of lossy solids and lossy liquids is conducted over 4 MHz 67 GHz using calibrated DAK-TL2 and DAK measurement systems respectively.

2

The dielectric properties are reported as the average of multiple measurements on different samples for each material.

. At 130 Wm-K BeOSiC has a room temperature thermal conductivity that is more than a factor of two higher than the next best commercially-available lossy dielectric. Rcrumpfutepedu Lecture Outline Lossy Dielectrics Power Slide 2. Ray Kwok Example a Calculate the dielectric loss in dB of an EM wave propagating through 100 m of teflon at 1 MHz.

Distribution of these materials is strictly prohibited Course Instructor Dr. Dielectric Loss refers to the Loss of energy that goes into heating a Dielectric material in a varying electric field. Time Constant provides an estimation of the relevant time scales for transient effects.

These notes may contain copyrighted material obtained under fair use rules. With a loss tangent of 025. Material Conductivity Copper 596 107Sm Gold 410 107Sm Nickel 143 107Sm Iron 100 107Sm Drinking Water 5 103Sm Air 1010Sm Teflon 1024Sm The Complex Permeability 𝜇 ä Slide 6 j Similarly the permeability 𝜇 äcan also be a complex number.

See the transient section of whether to use conductivity. Dielectric loss EM wave absorbers and underlying loss mechanism investigation are of great significance to unveil EM wave attenuation behaviors of materials and guide novel dielectric loss materials design. The numerical results demonstrate the feasibility of these internal antenna designs achieving broad bandwidth that is required for wireless communication systems.

Attenuation constant 훼 is the measure of the spatial rate of decay of the electromagnetic wave in the medium measured in nepers per meter Npm or in decibels per meter dBm. A lossless dielectric would be a dielectric material which does not dissipate EM energy due to poor conduction of the wave. A lossy dielectric medium is defined as a medium in which the electric conductivity is not equal to zero yet it is not a good conductor.

Since the discovery of barium titanate in the 1940s lead zirconate titanate ceramics in the 1950s and relaxor-PT single crystals such as lead magnesium niobate-lead titanate and lead zinc niobate-lead titanate in the 1980s and 1990s perovskite ferroelectric materials have been the. Resistive absorbing materials such as carbon materials have the advantages of high conductivity loss low density and abundant dipoles but they have poor impedance matching characteristics and. Lossy material Abstract.

005 604 10 2 208 46 10 377 2 2 208 0. However current researches focus more on materials synthesis rather than in-depth mechanism study. It is unusual to see complex permeability 𝜇 äused in practice.

The loss angle δ is equal to 90 θ. Setting σ 0 in Equation 112 leads to a non-zero attenuation constant α 0. 686 604 10 100 0.

This power loss is due to poor conduction. In this paper two possible internal antenna configurations that include lossy plastic chassis materials are studied using the IE3D simulation package. Written 44 years ago by govindkedar 220 modified 6 months ago by sagarkolekar 10k electromagnetic field and wave theory ADD COMMENT EDIT Please log in to add an answer.

Fact that in the time domain all the fields H x E y H z are real quantities. ε r 208 tan δ 00004 at 25 oC assuming frequency independence. Conduction in a medium leads to Joule heat- ing which implies a loss of power which means that the electric and magnetic field amplitudes have to suffer from attenuation.

0004 46 10 36 10 tan 2 10. This tool provides a quick calculation of lossy electrical properties from the input parameters to the left. Electrical conductivity can be calculated from σ2πftanδεε 0 where f is the frequency in Hz ε is the real part of complex permittivity tanδ is the loss tangent and ε 0 is the vacuum permittivity.

The dielectric loss tangent tan δ of a material denotes quantitatively dissipation of the electrical energy due to different physical processes such as electrical conduction dielectric relaxation dielectric resonance and loss from non-linear processes 4Origin of dielectric losses can also be considered as being related to delay between the electric field and the electric displacement. Lossy Medium - Dr. Ferroelectric materials are the best dielectric and piezoelectric materials known today.

It tends to depend mainly on the Dielectric material and the frequency. The materials frequency dependency is visualized according to the selected Start End and Resolution frequencies. The real and imaginary.

B at 10 GHz. This makes the refractive index approach and the conductivity approach equivalent. The Dielectric constant formula is K fracE_0E or the ratio of the electric field in a vacuum to that in the Dielectric material and is considerably connected to the polarizability of the material.

For a lossy dielectric material having μ r 1 ϵ r 48 and σ 20 s m. Loss in a less than perfect dielectric is usually expressed as heat. It must not pass current but must pass the field between the plates.

When you click the button the data for the material below will update based on your input. The total current I I c I 1 jωC GV. I 1 will be equal to GV where G represents the conductance of the dielectric material.

A dB 8. Dielectrics that exhibit electromagnetic loss at microwave frequencies are used extensively in coupled-cavity traveling-wave tubes CCTWTs and less frequently in klystrons gyrotrons and gyro-klystrons as rf terminations to suppress unwanted oscillations and to reduce rf cavity Qs. Thus corresponds to time-to-frequency domain Fourier transform.

The current leads the voltage by an angle θ which is less than 90. Calculate the propagation constant at a frequency of 16 GHz. A lossy dielectric can be described as a medium where some fraction of the electromagnetic wave power is lost as the wave propagates.

The insulator between the two metal plates of a capacitor would be a dielectric.

4 7 Wave Propagation In Lossless Dielectric Free Space Youtube

Lossy Dielectric Album On Imgur

Dielectric Properties Of Ceramics Ppt Video Online Download

Parallel Equivalent Circuit Representing A Lossy Dielectric And The Download Scientific Diagram

A A Small Lossy Dielectric Sphere Transforms Into B A Large Hollow Download Scientific Diagram

Maxwell Wagner Equivalent Circuit Model Of A Heterogeneous Lossy Download Scientific Diagram

Dielectric Medium An Overview Sciencedirect Topics

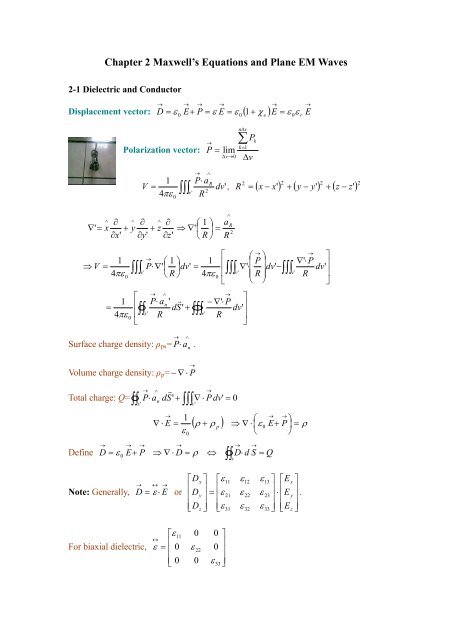

Chapter 2 Maxwell S Equations And Plane Em Waves

4 4 Wave Propagation In Lossy Dielectrics For I E S G A T E Youtube

Lossy And Lossless Dielectric Loading H 8 Mm R 4 Mm Download Table

The Geometry Of The Lossy Lhm Slab Between Two Lossy Dielectric Media Download Scientific Diagram

Dielectric Medium An Overview Sciencedirect Topics

Dielectric Medium An Overview Sciencedirect Topics

Dielectric Constant And Loss Capacitor Phasor Diagram Measurement Ranges

Dielectric Properties Why They Re Important And How To Measure Them

4 4 Wave Propagation In Lossy Dielectrics For I E S G A T E Youtube

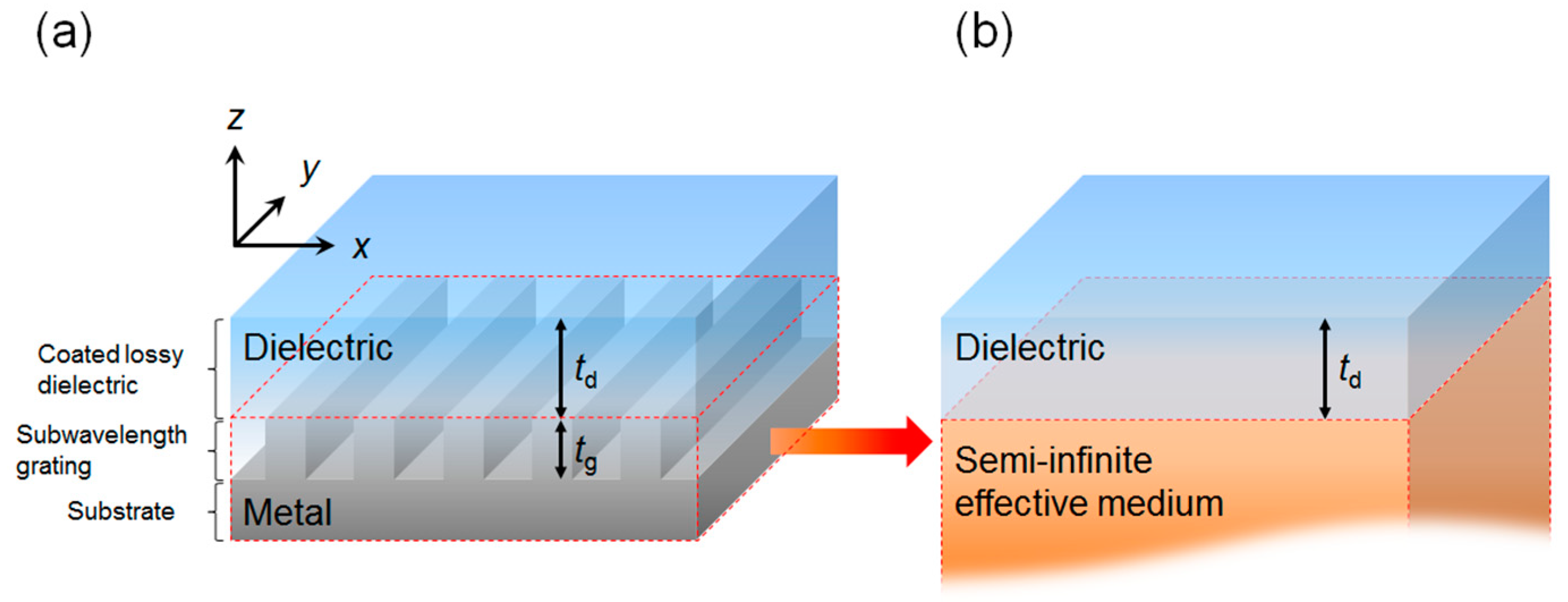

Applied Sciences Free Full Text Numerical Study On The Absorption Characteristics Of Subwavelength Metallic Gratings Covered With A Lossy Dielectric Layer Html
